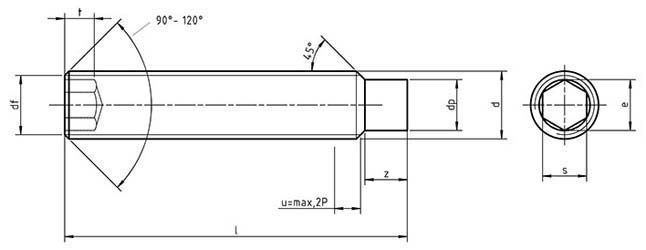

PN 82316 - Hexagon socket set screws with full dog point
Dimensions for PN 82316 - Hexagon socket set screws with full dog point
| d | dp | t | s |
|---|---|---|---|
| M 3 | 2 | 1.2 | 1.5 |
| M 4 | 2.5 | 1.5 | 2 |
| M 5 | 3.5 | 2 | 2.5 |
| M 6 | 4 | 2 | 3 |
| M 8 | 5.5 | 3 | 4 |
| M 10 | 7 | 4 | 5 |
| M 12 | 8.5 | 4.8 | 6 |
| M 16 | 12 | 6.4 | 8 |
| M 20 | 15 | 8 | 10 |
| M 24 | 18 | 10 | 12 |
