EU 24028
Home
Standards
EU 24028
Equivalent Standards
DIN 915
ISO 4028
CSN 21189
PN 82316
UNI 5925

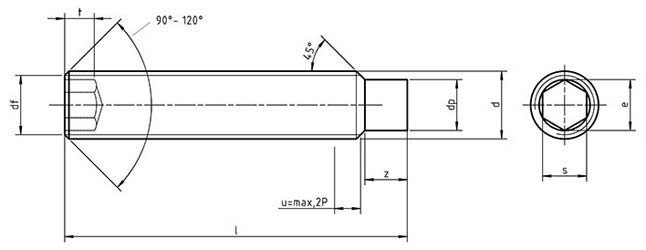

Dimensions for EU 24028 Hexagon socket set screws with full dog point
d
dp
t
s
M 3
2
1.2
1.5
M 4
2.5
1.5
2
M 5
3.5
2
2.5
M 6
4
2
3
M 8
5.5
3
4
M 10
7
4
5
M 12
8.5
4.8
6
M 16
12
6.4
8
M 20
15
8
10
M 24
18
10
12
