UNI 5735 - Flat countersunk square neck bolts (with short square neck)

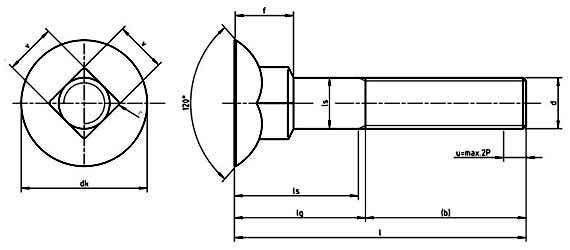

Dimensions for UNI 5735 - Flat countersunk square neck bolts (with short square neck)
| Thread d | p | b | dk | ds | f | r | v | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| max | min | max | min | max | min | max | max | min | |||
| M10 | 1.5 | 26 | 19.65 | 18.35 | 10 | 9.42 | 8.45 | 7.55 | 1.5 | 10.58 | 9.42 |
| M12 | 1.75 | 30 | 24.65 | 23.35 | 12 | 11.3 | 11.05 | 9.95 | 1.8 | 12.7 | 11.3 |
