PN 85018 - Parallel Pins with Internal Thread
Home
Standards
PN 85018
Equivalent Standards
DIN 7979
ISO 8735
CSN 22151
UNI 6364

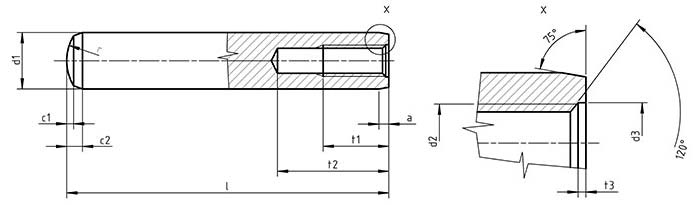

Dimensions for PN 85018 - Parallel Pins with Internal Thread
d m6
d2
f1
f2
t
6
M4
2.1
0.8
6
8
M5
2.6
1
8
10
M6
3
1.2
10
12
M6
3.8
1.6
10
14
M8
4
1.8
12
16
M8
4.7
2
12
20
M10
6
2.5
16
