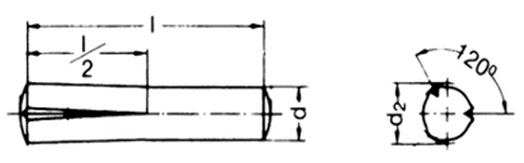

ISO 8745 Grooved Dowel Pin
Dimensions of Grooved Dowel Pins
| d1 | d2 | c |
|---|---|---|
| 1.5 | 1.60 to 1.63 | 0.2 |
| 2 | 2.10 to 2.15 | 0.25 |
| 2.5 | 2.60 - 2.70 | 0.3 |
| 3 | 3.20 - 3.30 | 0.4 |
| 4 | 4.15 - 4.30 | 0.5 |
| 5 | 5.15 - 5.30 | 0.63 |
| 6 | 6.15 - 6.35 | 0.85 |
| 8 | 8.20 - 8.40 | 1 |
| 10 | 10.20 - 10.45 | 1.2 |
| 12 | 12.25 - 12.50 | 1.6 |
