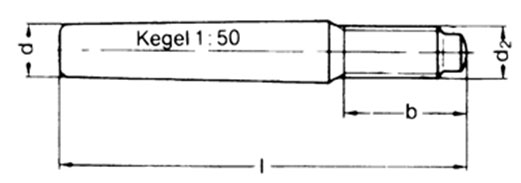

ISO 8737 Taper Pins with External Threads

Dimensions of Taper Pins with External Threads

d	b	d2	a max
5	14	M 5	2.4
6	18	M 6	3.0
8	22	M 8	4.0
10	24	M 10	4.5
12	27	M 12	5.3
14	30	M 12	6.0
16	35	M 16	6.0
20	35	M 16	6.0
