ISO 4016 Hexagon Head Bolts with Nut (ISO 4034) , Production Class C

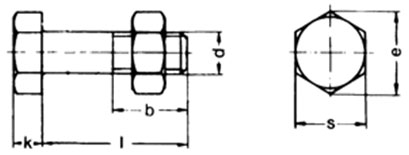

Dimensions of Hexagon Head Bolts with Nut
| d | s | k | b1(l < 125 mm) | b2(l < 200 mm) | b3(l > 200 mm) |
|---|---|---|---|---|---|
| M 10 | 16 | 6.4 | 26 | 32 | 45 |
| M 12 | 18 | 7.5 | 30 | 36 | 49 |
| M 14 | 21 | 8.8 | 34 | 40 | 53 |
| M 22 | 34 | 14 | 50 | 56 | 69 |
| d | s | k | b1(l < 125 mm) | b2(l < 200 mm) | b3(l > 200 mm) |
|---|---|---|---|---|---|
| M 10 | 16 | 6.4 | 26 | 32 | 45 |
| M 12 | 18 | 7.5 | 30 | 36 | 49 |
| M 14 | 21 | 8.8 | 34 | 40 | 53 |
| M 22 | 34 | 14 | 50 | 56 | 69 |
