ISO 2342 Slotted Headless Screws with Chamfered End
Equivalent Standards

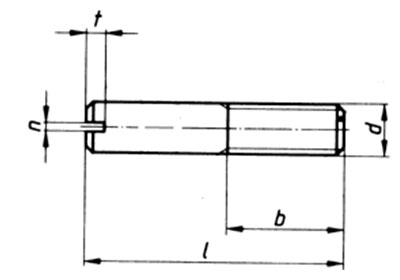

Dimensions of Slotted Headless Screws with Chamfered End
| Dimensions | ds | b | n | t |
|---|---|---|---|---|
| M 3 | 3 | 3.6 | 0.4 | 0.8 |
| M 4 | 4 | 4.8 | 0.6 | 1.12 |
| M 5 | 5 | 6 | 0.8 | 1.28 |
| M 6 | 6 | 7.2 | 1 | 1.6 |
| M 8 | 8 | 9.6 | 1.2 | 2 |
| M 10 | 10 | 12 | 1.6 | 2.4 |
| M 12 | 12 | 14 | 2 | 2.8 |
