ISO 15481 : Cross Recessed Pan Head Self Drilling Screws (Thread Forming Screws)
Equivalent Standards

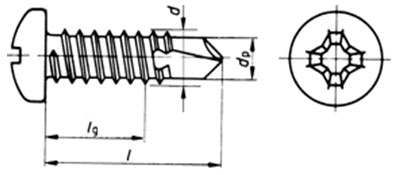

Dimensions of Cross Recessed Pan Head Self Drilling Screws
| d | d2 max. | k max. | dk max. | Grôße PH |
|---|---|---|---|---|
| 2.9 | 5.6 | 2.2 | 2.3 | 1 |
| 3.5 | 6.9 | 2.6 | 2.8 | 2 |
| 3.9 | 7.5 | 2.8 | 3.1 | 2 |
| 4.2 | 8.2 | 3.05 | 3.6 | 2 |
| 4.8 | 9.5 | 3.55 | 4.1 | 2 |
| 5.5 | 10.8 | 3.95 | 4.8 | 3 |
| 6.3 | 12.5 | 4.55 | 5.8 | 3 |
