EU 27436 Slotted set screws with cup point
Home
Standards
EU 27436
Equivalent Standards
DIN 438
ISO 7436
CSN 21182
PN 82274

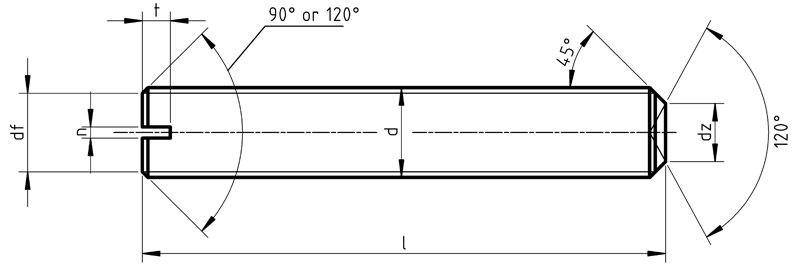

Dimensions for EU 27436 Slotted set screws with cup point
I
dz max.
n
t min.
M 3
1.4
0.4
0.8
M 4
2
0.6
1.12
M 5
2.5
0.8
1.28
M 6
3
1
1.6
M 8
5
1.2
2
M 10
6
1.6
2.4
M 12
8
2
2.5
