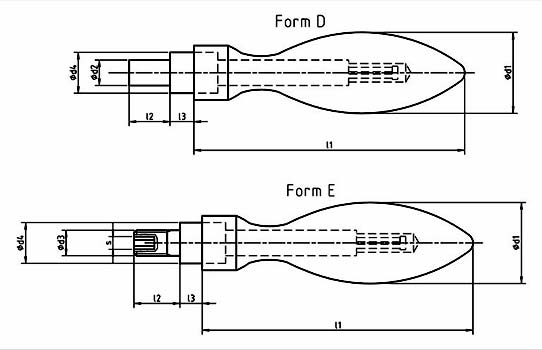

Dimensions for DIN 98 Handles, rotatable

d1	d2 (FormD)	d3 (Form E)	d4h13	l1	l2	l3	Held Hex
16	7	M6	10	49	11	5.5	3
20	8	M8	13	61	13	6	4
25	10	M10	16	75	14	8	5
32	13	M12	20	95	21	10.5	6
36	16	M16	22	106	26	11	8
