DIN 920 : Slotted Pan Head Screws, Small Head

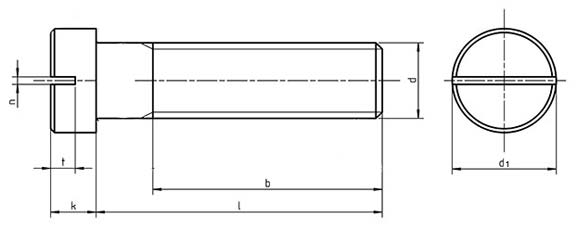

Dimensions of Slotted Pan Head Screws, Small Head
| d | d1 max | k | n | t min | b |
|---|---|---|---|---|---|
| M 1.6 | 2.3 | 1 | 0.3 | 0.5 | 4 |
| M 2 | 2.8 | 1.2 | 0.3 | 0.6 | 6 |
| M 2.5 | 3.5 | 1.5 | 0.4 | 0.75 | 7 |
| M 3 | 4 | 1.8 | 0.5 | 0.9 | 9 |
| M 4 | 5.5 | 2.4 | 0.6 | 1.2 | 12 |
| M 5 | 6.5 | 2.7 | 0.8 | 1.3 | 15 |
| M 6 | 8 | 3.1 | 1 | 1.5 | 18 |
| M 8 | 10 | 3.8 | 1.2 | 1.9 | 24 |
