DIN 70613 Hexagon bolts with small widths across flats
Equivalent Standards

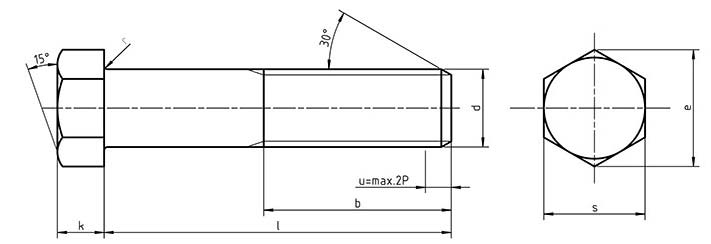

Dimensions for DIN 70613 Hexagon bolts with small widths across flats
| thread d | b | e | k | r | s |
|---|---|---|---|---|---|
| M6 | 11 | 10.4 | 4 | 0.3 | 9 |
| M8 | 14 | 13.8 | 5 | 0.5 | 12 |
| M10 | 16 | 16.2 | 6 | 0.5 | 14 |
| M12 | 18 | 19.6 | 7 | 1 | 17 |
| M16 | 22 | 25.4 | 9 | 1 | 22 |
