DIN 675 : Flat Countersunk Head Rivets

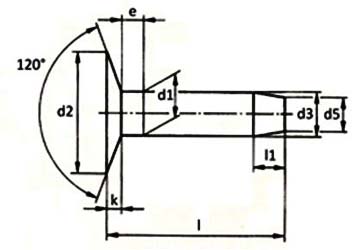

Dimensions of Flat Countersunk Head Rivets
| d1 | d2 | k | d3 (min) | d5 | e (max) | l1 | l |
|---|---|---|---|---|---|---|---|
| 3 | 8.3 | 1 | 2.87 | 2.2 | 1.5 | 2 | 8 - 20 |
| 4 | 11 | 1.3 | 3.87 | 3 | 2 | 3 | 10 - 25 |
| 5 | 13.8 | 1.6 | 4.82 | 4 | 2.5 | 3.5 | 10 - 30 |
| d1 | d2 | k | d3 (min) | d5 | e (max) | l1 | l |
|---|---|---|---|---|---|---|---|
| 3 | 8.3 | 1 | 2.87 | 2.2 | 1.5 | 2 | 8 - 20 |
| 4 | 11 | 1.3 | 3.87 | 3 | 2 | 3 | 10 - 25 |
| 5 | 13.8 | 1.6 | 4.82 | 4 | 2.5 | 3.5 | 10 - 30 |
