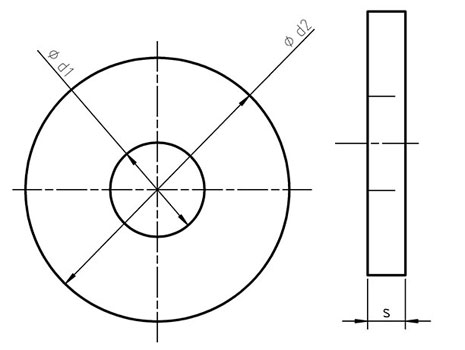

Dimensions for DIN 6340 Washers for clamping devices

d1 H14	d2 h14	s	weight (7.85kg/dm3) kg/1000 pcs	For use with bolts of size
6.4	17	3	4.6	M6
8.4	23	4	11.3	M8
10.5	26	4	16.6	M10
13	35	5	32.5	M12
17	45	6	64.3	M16
21	50	6	76	M20
25	60	8	147	M24
31	68	10	226	M30
