DIN 6336 K Star knobs form K with threaded bush

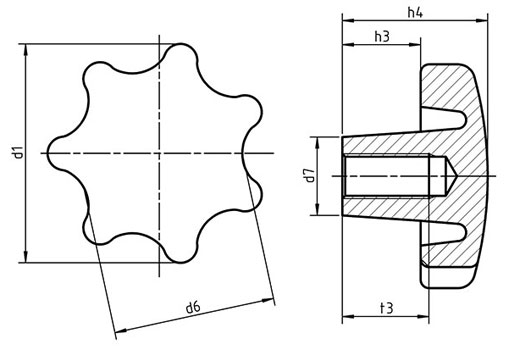

Dimensions for DIN 6336 K Star knobs form K with threaded bush
| size | d1 | d6 | d7 | h3 | h4 | t3 min |
|---|---|---|---|---|---|---|
| M4 | 20 | 16 | 10 | 7 | 13 | 6.5 |
| M5 | 25 | 20 | 12 | 8 | 16 | 9.5 |
| M6 | 32 | 26 | 14 | 10 | 20 | 12 |
| M8 | 40 | 34 | 18 | 13 | 25 | 14 |
| M10 | 50 | 42 | 22 | 17 | 32 | 18 |
| M12 | 63 | 52 | 26 | 21 | 40 | 22 |
| M16 | 80 | 64 | 35 | 25 | 50 | 30 |
