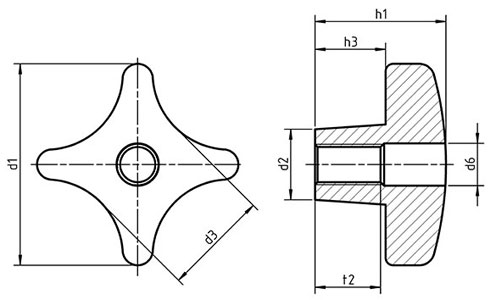

DIN 6335 D Cross handles Form D with through holes
Dimensions for DIN 6335 D Cross handles Form D with through holes
| Size | d1 | d2 | d3 | d6 | h1 | h3 | t2 |
|---|---|---|---|---|---|---|---|
| M6 | 32 | 12 | 18 | 6.4 | 21 | 10 | 10 |
| M8 | 40 | 14 | 21 | 8.4 | 26 | 14 | 13 |
| M10 | 50 | 18 | 25 | 10.5 | 34 | 20 | 16 |
| M12 | 63 | 20 | 32 | 13 | 42 | 25 | 20 |
| M16 | 80 | 25 | 40 | 17 | 52 | 30 | 20 |
| M20 | 100 | 32 | 48 | 21 | 65 | 38 | 25 |
