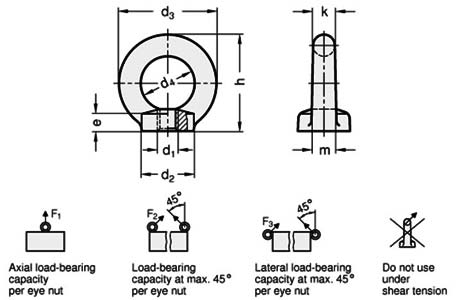

Dimensions of Forged Lifting Eye Nuts

d1	d2	d3	d4	e	h	k	m
M 8	20	36	20	8.5	36	8	10
M 10	25	45	25	10	45	10	12
M 12	30	54	30	11	53	12	14
M 16	35	63	35	13	62	14	16
M 20	40	72	40	16	71	16	19
M 24	50	90	50	20	90	20	24
M 30	65	108	60	25	109	24	28
M 36	75	126	70	30	128	28	32
