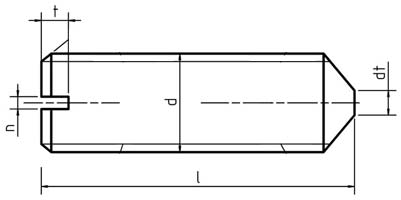

Dimensions of Slotted Set Screws with Cone Point

Dimensions	n	t	dt max
M 1.4	0.2	0.48	0.14
M 1.6	0.25	0.56	0.16
M 2	0.25	0.64	0.2
M 2.5	0.4	0.72	0.25
M 3	0.4	0.8	0.3
M 4	0.6	1.12	0.4
M 5	0.8	1.28	0.5
M 6	1	1.6	1.5
M 8	1.2	2	2
M 10	1.6	2.4	2.5
M 12	2	2.8	3
