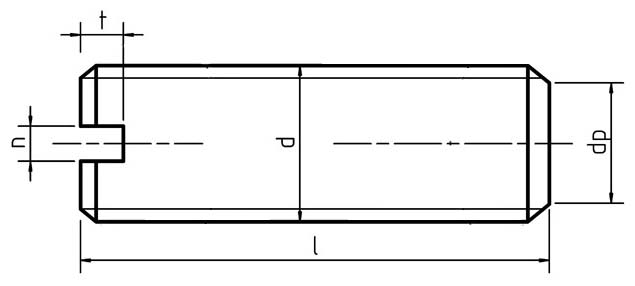

Dimensions of Slotted Set Screws with Flat Point

Dimensions	n	t	dp
M 1.4	0.2	0.48	0.7
M 1.6	0.25	0.56	0.8
M 2	0.25	0.64	1
M 2.5	0.4	0.72	1.5
M 3	0.4	0.8	2
M 4	0.6	1.12	2.5
M 5	0.8	1.28	3.5
M 6	1	1.6	4
M 8	1.2	2	5.5
M 10	1.6	2.4	7
M 12	2	2.8	8.5
