DIN 529 G Anchor Bolts
Equivalent Standards

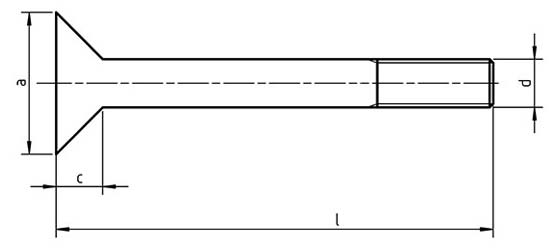

Dimensions for DIN 529 G Anchor Bolts
| Thread Size d | p | b | a ± 3 | c ± 5 |
|---|---|---|---|---|
| M8 | 1.25 | 20 | 20 | 5 |
| M10 | 1.5 | 25 | 25 | 6 |
| M12 | 1.75 | 30 | 30 | 7 |
| M16 | 2 | 40 | 40 | 10 |
| M20 | 2.5 | 50 | 50 | 12 |
| M24 | 3 | 60 | 60 | 14 |
| M30 | 3.5 | 75 | 75 | 18 |
| M36 | 4 | 90 | 90 | 22 |
| M42 | 4.5 | 105 | 105 | 25 |
| M48 | 5 | 120 | 120 | 29 |
| M56 | 5.5 | 140 | 140 | 34 |
| M64 | 6 | 160 | 160 | 38 |
| M72x6 | 6 | 180 | 180 | 43 |
