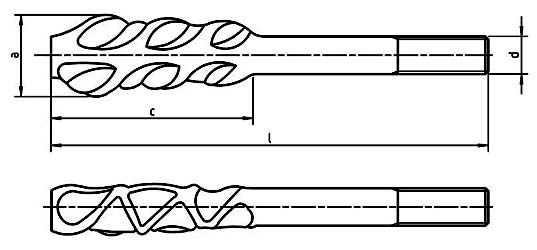

Dimensions for DIN 529 E Anchor Bolts

Thread Size d	p	b	a ± 3	c ± 5
M8	1.25	20	16	45
M10	1.5	25	20	55
M12	1.75	30	24	70
M16	2	40	32	90
M20	2.5	50	40	100
M24	3	60	48	135
M30	3.5	75	60	150
M36	4	90	72	180
M42	4.5	105	85	260
M48	5	120	98	260
M56	5.5	140	-	-
M64	6	160	-	-
M72x6	6	180	-	-
