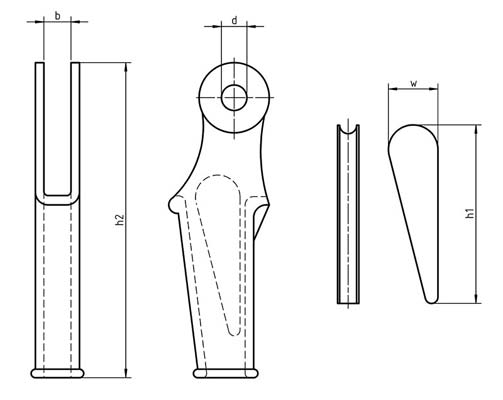

Dimensions for DIN 43148 Rope suspensions with wedge sockets

rope	h1	w	b	d	h2
6 - 7	85	30	14	14	150
8	81	24	14	14	150
9 - 12	78	20	14	14	150
10 - 12	81	24	17	17	163
12 - 14	76	20	17	17	163
12 - 15	107	36	20	20	220
16 - 20	136	49	24	25	273
21 - 26	210	81	30	33.5	370
27 - 32	212	88	37	48.5	486
