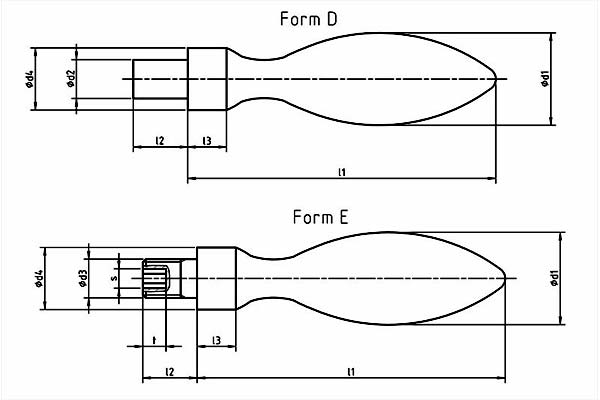

Dimensions for DIN 39 Handles Fixed

D	D3	D4	L1	L2	L3	Internal Hexagon	Approx. Weight kg
16	M6	10	50	11	7	3	0.045
20	M8	13	64	13	8	4	0.09
25	M10	16	80	14	10	5	0.18
32	M12	20	100	21	13	6	0.36
36	M16	22	112	26	14	8	0.525
