DIN 22424 A Triangle head bolts

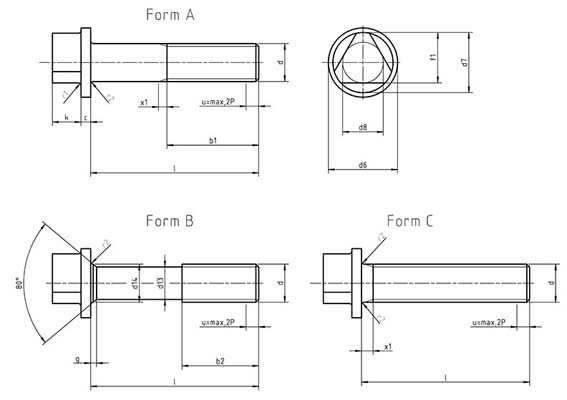

Dimensions for DIN 22424 A Triangle head bolts
| Size | B1 min | C max | D6 max | D7 min | D8 min | F1 min | K max |
|---|---|---|---|---|---|---|---|
| M6 | 14.8 | 2.1 | 12.2 | 11.4 | 7.8 | 9.55 | 4.6 |
| M8 | 17.8 | 2.4 | 15.2 | 13.9 | 9.3 | 11.55 | 6.1 |
| M10 | 19.8 | 2.9 | 18.2 | 16.9 | 11.8 | 14.3 | 7.7 |
| Size | B1 min | C max | D6 max | D7 min | D8 min | F1 min | K max |
|---|---|---|---|---|---|---|---|
| M6 | 14.8 | 2.1 | 12.2 | 11.4 | 7.8 | 9.55 | 4.6 |
| M8 | 17.8 | 2.4 | 15.2 | 13.9 | 9.3 | 11.55 | 6.1 |
| M10 | 19.8 | 2.9 | 18.2 | 16.9 | 11.8 | 14.3 | 7.7 |
