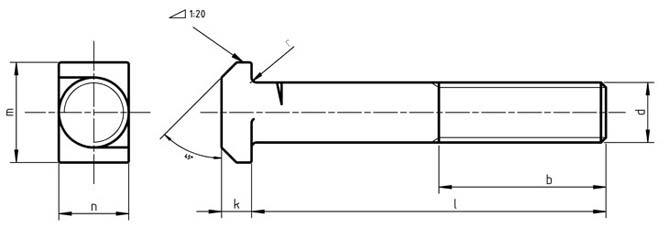

Dimensions for DIN 188 T-Head Bolts With Double Nip

p	b	k	n	m
1.25	22	5.5	8	18
1.5	26	7	10	21
1.75	30	8	12	26
2	38	10.5	16	30
2.5	46	13	20	36
3	54	15	24	43
3.5	66	19	30	54
4	78	23	36	66
4.5	96	26	42	80
5	108	30	48	88
5.5	124	35	56	102
6	130	40	64	115
6	156	45	72	128
6	172	50	80	140
