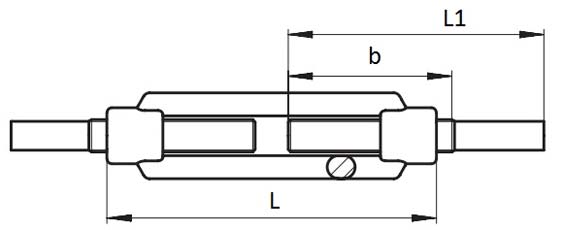

Dimensions for DIN 1480 SE Turnbuckles with 2 Stub Ends

Thread	L	b	L1
M6	110	60	120
M8	110	65	120
M10	125	75	150
M12	125	75	150
M16	170	100	200
M20	200	120	220
M24	255	150	260
M30	255	160	260
M36	295	180	300
M42	330	200	350
M48	355	220	380
M56	355	230	380
