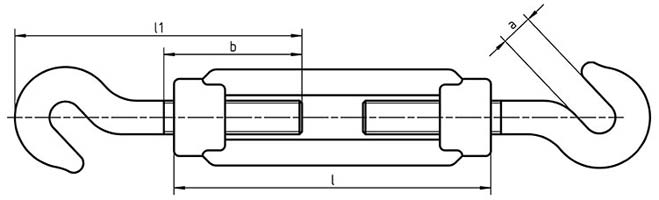

Dimensions for DIN 1480 HH Turnbuckles, forged (open form)

Thread	a	b	L	L1
M6	8	50	110	77
M8	10	60	110	98
M10	12.5	73	125	116.5
M12	16	90	125	146
M16	16	100	170	165
M20	18	105	200	180
M24	30	135	255	225
M30	30	140	255	255
M36	32	170	295	300
