DIN 1478 JJ Turnbuckles with 2 Jaws, forged (open form)
Equivalent Standards

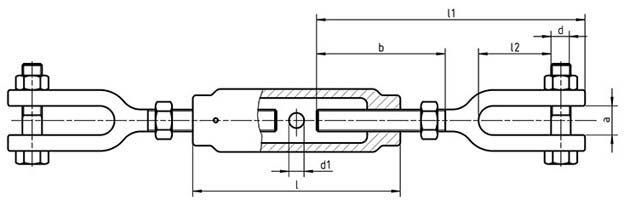

Dimensions for DIN 1478 JJ Turnbuckles with 2 Jaws, forged.
| Thread | L | L1 | L2 | b1 | d1 min | d1 max | d | a |
|---|---|---|---|---|---|---|---|---|
| M8 | 110 | 80 | 7.5 | 8.5 | 11 | 11 | ||
| M10 | 125 | 95 | 7.5 | 8.5 | 15 | 14 | ||
| M12 | 125 | 107 | 9.5 | 10.5 | 17 | 18 | ||
| M16 | 170 | 146 | 9.5 | 10.5 | 22 | 19 | ||
| M20 | 200 | 170 | 11.5 | 12.5 | 24 | 21 | ||
| M24 | 255 | 213 | 11.5 | 12.5 | 33 | 29 | ||
| M30 | 255 | 255 | 15.5 | 16.5 | 39 | 31 |
