DIN 1052 Washers for wood constructions
Equivalent Standards

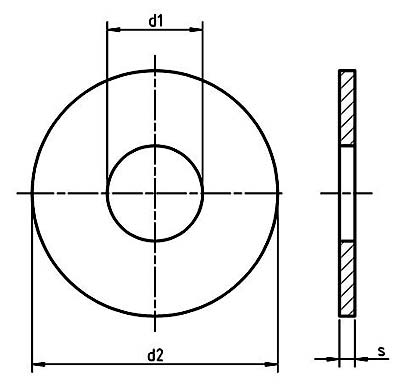

Dimensions for DIN 1052 Washers for wood constructions
| d | d1 | d2 | s |
|---|---|---|---|
| M12 | 14 | 58 | 6 |
| M16 | 18 | 68 | 6 |
| M20 | 23 | 80 | 8 |
| M22 | 25 | 92 | 8 |
| M24 | 27 | 105 | 8 |
| d | d1 | d2 | s |
|---|---|---|---|
| M12 | 14 | 58 | 6 |
| M16 | 18 | 68 | 6 |
| M20 | 23 | 80 | 8 |
| M22 | 25 | 92 | 8 |
| M24 | 27 | 105 | 8 |
