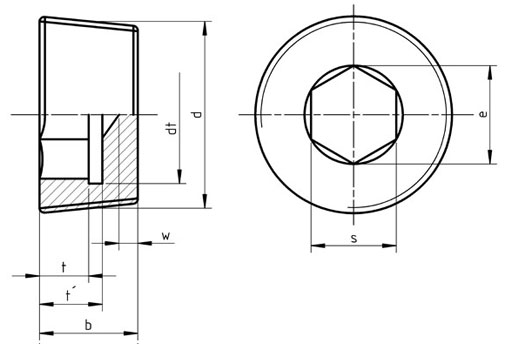

Dimensions for CSN 21913 - Locking screws with hexagon socket, taper thread

d1			b	e	s	t	t'	w	Weight (7.85 kg/dm3) kg/1000 pieces
Metric Fine Thread		Pipe Thread	js 16	min.	D12	min.	min.	min.
M8x1	-	-	8	4.6	4	4	4.7	2	2.07
M10x1	-	R1/8	8	5.7	5	4	4.7	2	3.38
M12x1.5	-	-	10	6.9	6	5	5.9	2	6.1
-	-	R1/4	10	8	7	5	6	2	7
M14x1.5	-	-	10	8	7	5	6	2	8.1
M16x1.5	-	-	10	9.2	8	5	6.2	2	11
-	-	R3/8	10	9.2	8	5	6.2	2	12.2
M18x1.5	-	-	10	9.2	8	5	6.2	2	14.6
M20x1.5	-	-	10	11.4	10	5	6.4	2	17.6
-	-	R1/2	10	11.4	10	5	6.4	2	19
M22x1.5	-	-	10	11.4	10	5	6.4	2	22
M24x1.5	-	-	12	13.7	12	6	7.7	2	30.8
M26x1.5	-	-	12	13.7	12	6	7.7	2	38.6
-	M27x2	R3/4	12	13.7	12	6	7.7	2	40.2
M30x1.5	M30x2	-	12	19.4	17	6	7.7	2	44
-	M33x2	R1	12	19.4	17	6	7.7	2	57.5
M36x1.5	M36x2	-	15	21.7	19	7.5	9.2	3	85.2
M38x1.5	-	-	15	21.7	19	7.5	9.2	3	97.4
-	M39x2	-	15	21.7	19	7.5	9.2	3	103
M42x1.5	M42x2	R1 1/4	18	25.2	22	11.5	13.2	3	135
M45x1.5	M45x2	-	18	25.2	22	11.5	13.2	3	167
M48x1.5	M48x2	R1 1/2	20	27.4	24	11.5	13.5	4	214
M52x1.5	M52x2	-	20	27.4	24	11.5	13.5	4	253
-	M56x2	-	22	36.6	32	13	15.6	4	274
-	M60x2	-	22	36.6	32	13	15.6	4	350
