CSN 21728 - Washers with square holes for use in timber constructions

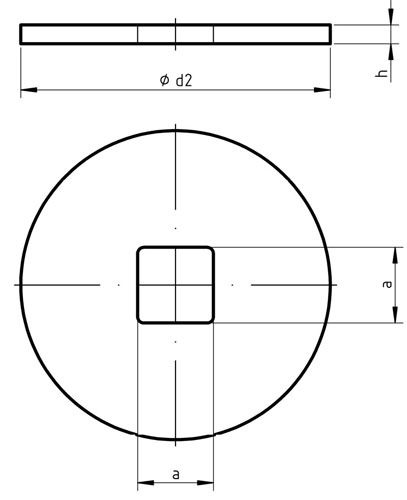

Dimensions for CSN 21728 - Washers with square holes for use in timber constructions
| d* | d1 | d2 | h | a |
|---|---|---|---|---|
| M5 | 5.5 | 18 | 2 | 5.5 |
| M6 | 6.6 | 22 | 2 | 6.6 |
| M8 | 9 | 28 | 3 | 9 |
| M10 | 11 | 34 | 3 | 11 |
| M12 | 14 | 44 | 4 | 14 |
| M16 | 18 | 56 | 5 | 18 |
| M20 | 22 | 72 | 6 | 22 |
| M22 | 24 | 80 | 6 | 24 |
