CSN 21329 - Plate screws
Equivalent Standards

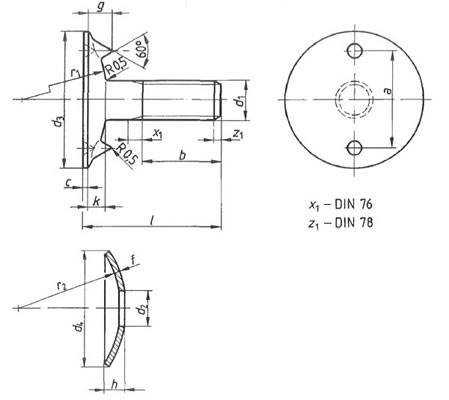

Dimensions for CSN 21329 - Plate screws
| d1 | d3 | a | cmax | g | k | r |
|---|---|---|---|---|---|---|
| M6 | 20 | 14 | 1 | 3.5 | 2.5 | 20 |
| M8 | 28 | 20 | 1 | 5 | 3.5 | 28 |
| M10 | 35 | 25 | 1 | 6 | 4.5 | 35 |
| M12 | 42 | 30 | 1.2 | 7 | 5.2 | 42 |
| d1 | d3 | a | cmax | g | k | r |
|---|---|---|---|---|---|---|
| M6 | 20 | 14 | 1 | 3.5 | 2.5 | 20 |
| M8 | 28 | 20 | 1 | 5 | 3.5 | 28 |
| M10 | 35 | 25 | 1 | 6 | 4.5 | 35 |
| M12 | 42 | 30 | 1.2 | 7 | 5.2 | 42 |
